RootsAI

Cognitive diagnostic engine that finds where learning actually broke down.

Overview • How It Works • Architecture • Quick Start • API Reference

Repository: https://github.com/bokaif/RootsAI

Overview

When a student struggles with a topic in Class 9, the real problem is often something from Class 7 or 8 that was never fully understood. Most learning tools don't go looking for that. RootsAI does.

The system takes a student's problem, maps it onto an authored curriculum graph, traverses prerequisites to build a "Concept MRI," diagnoses knowledge gaps through targeted quizzes, and guides the student through a gamified remediation path — ending with a Feynman-style verification where the student teaches the concept back to the AI.

Core principles:

• The graph is the source of truth, not the LLM. Every AI output is validated against the real curriculum graph. The LLM maps problems to existing nodes — it never invents curriculum.
• Deterministic where it matters. Same problem → same concept map → same prerequisite tree → same quiz. Reproducible diagnostics, every time.
• Mastery is earned, not assumed. Students prove understanding by re-answering missed questions and explaining concepts back (Feynman technique).

How It Works

Student submits problem (text or photo)
        │
        ▼
   ┌─────────┐    Zod-validated against
   │   Map   │───▶ real graph slugs
   └────┬────┘    (hallucinated slugs rejected)
        │
        ▼
  ┌──────────┐    Deterministic BFS
  │ Traverse │───▶ prerequisite subtree
  └────┬─────┘    ("Concept MRI")
       │
       ▼
   ┌────────┐     Authored questions verbatim,
   │  Quiz  │────▶ or generate-once + cache
   └────┬───┘     in Firestore
        │
        ▼
  ┌──────────┐    Duolingo-style serpentine path,
  │  Learn   │───▶ foundational-first ordering,
  └────┬─────┘    sequential unlock
       │
       ▼
  ┌──────────┐    Student teaches concept back
  │  Verify  │───▶ to the AI (Feynman technique)
  └──────────┘

Two modes

• Legacy (demo): Hardcoded NCTB Class 9 Physics graph — mechanics vertical with 19 authored nodes and hand-written quiz questions.
• Classroom: Teachers upload materials → AI extracts a concept graph → students run diagnostics against that graph. Works with any subject.

Features

Diagnostic Engine

• GraphRAG mapping: LLM routes problems to existing curriculum nodes with Zod hard-validation — no hallucinated concepts.

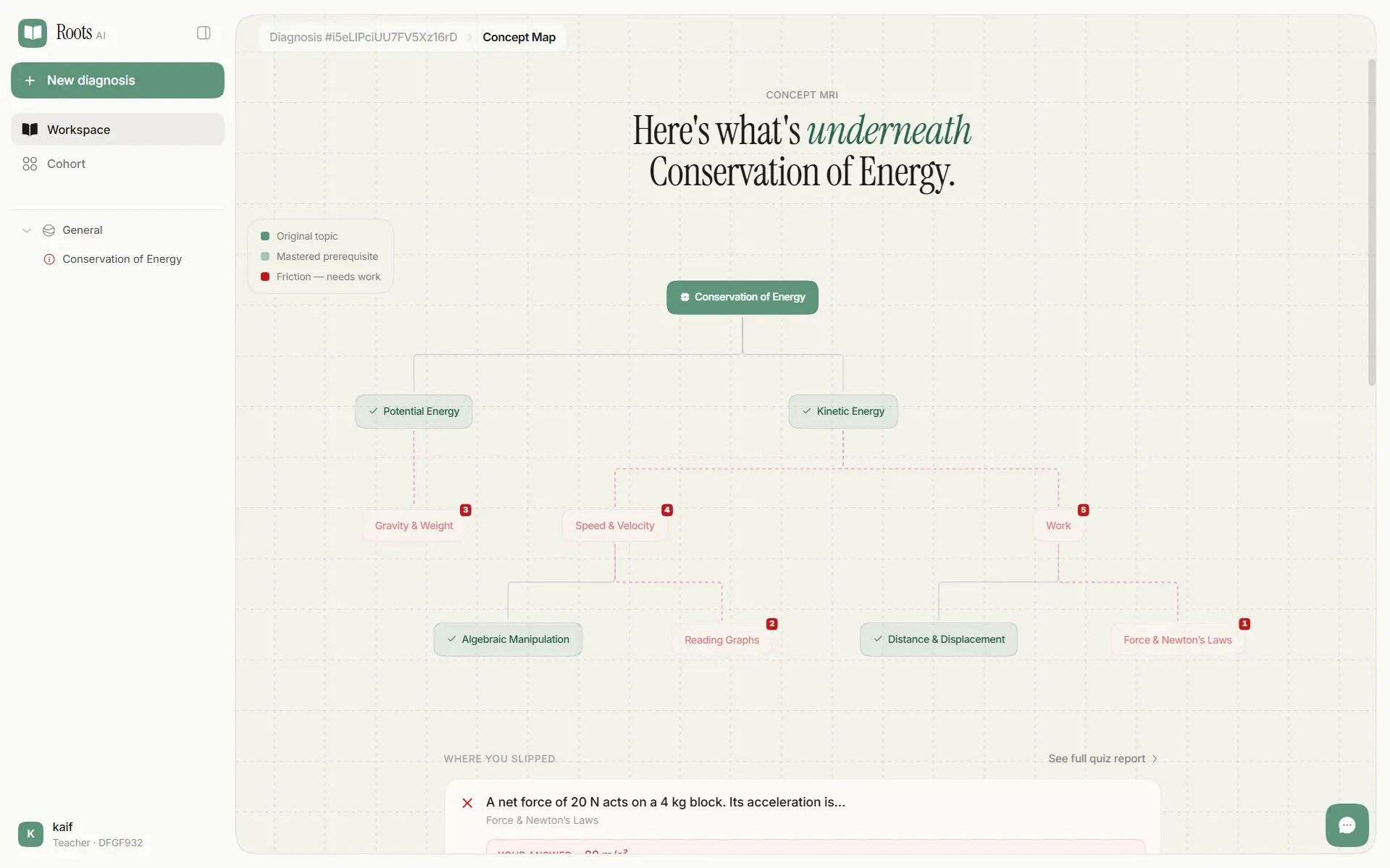

• Concept MRI: Deterministic BFS traversal builds the same prerequisite tree for the same root, every time.
• Hybrid quizzes: Authored questions used verbatim; unauthored nodes get AI-generated questions cached in Firestore.
• Adaptive remediation: All gaps recorded and ordered foundational-first. Lesson plans are deterministically structured from the graph.

Learning Path

• Serpentine path: Duolingo-style winding path of medallion nodes with strict sequential unlock.
• Earned mastery: Each gap node reuses the exact MCQ the student missed (options shuffled). Answer correctly → mastered.
• Feynman verification: Students teach the concept back to the AI via voice or text+photo before moving on.
• Gamification: Progress bar, XP system (+10/mastered), celebration animations (reduced-motion guarded).

Classroom System

• Teacher workflows: Create classrooms, upload materials (PDF/syllabus/notes/textbook), manage students.
• Dynamic graph extraction: AI extracts concept dependency graphs from uploaded materials for any subject.
• RAG-powered tutoring: LangGraph agent retrieves from teacher's knowledge base — never fabricates content.
• Analytics: Teacher dashboard with student progress and engagement tracking.

Additional

• Multimodal input: Students can photograph problems (camera/upload) — image is sent alongside text to the diagnostic engine.
• Voice transcription: Audio input transcribed via Gemini for Feynman verification.
• Real-time chat: Contextual AI tutor grounded in classroom materials with citation support.
• Role-based access: Firebase Auth with student/teacher roles and onboarding flow.

Architecture

Layer	Stack	Responsibilities
Frontend	Next.js 16, React 18, Chakra UI, Tailwind	Role-based app shell, diagnostic flow, serpentine learning path
Diagnostic Engine	Custom pipeline (map → traverse → quiz)	Problem mapping, prerequisite traversal, quiz resolution
Tutor Agent	LangGraph + LangChain	Stateful multi-tool agent: RAG retrieval, mastery check, grounded response
Curriculum Graph	Authored graph + Neo4j (optional)	Source-of-truth concept dependencies, BFS traversal
RAG Pipeline	LangChain TextSplitters + Gemini Embeddings	Chunk materials, embed, store in Supabase pgvector, HNSW cosine search
LLM Provider	Gemini (primary) + fallback chain	Structured JSON generation with retry + model-chain fallback
Auth / Data	Firebase Auth + Firestore	Identity, roles, diagnoses, classrooms, quiz cache, progress
File Storage	Supabase Storage	Problem photos, Feynman verification uploads

Project Structure

roots-ai/
├── src/
│   ├── app/
│   │   ├── (auth)/                  # Auth pages (signin, signup, onboarding, logout)
│   │   ├── api/
│   │   │   ├── diagnoses/           # Diagnostic CRUD, quiz, plan, chat, feynman, progress
│   │   │   ├── classrooms/          # Classroom CRUD, materials, graph extraction, analytics
│   │   │   ├── curriculum/seed/     # Graph seeding endpoint
│   │   │   ├── auth/                # Token refresh, expo web success
│   │   │   ├── transcribe/          # Audio transcription
│   │   │   ├── upload/              # File upload
│   │   │   └── profile/             # User profile
│   │   ├── docs/                    # Project documentation pages
│   │   ├── settings/                # Settings page
│   │   ├── roots-ai.tsx             # Main app shell (screen router)
│   │   └── globals.css              # Global styles + animations
│   ├── components/
│   │   ├── roots/
│   │   │   ├── screens/             # ScanScreen, QuizScreen, GraphScreen, LearnScreen,
│   │   │   │                        # VerifyScreen, DashboardScreen, SettingsScreen, etc.
│   │   │   ├── learn/serpentine.jsx  # Serpentine learning path primitives
│   │   │   ├── Composer.jsx         # Message composer with voice/image
│   │   │   ├── ChatPanel.jsx        # Contextual AI chat panel
│   │   │   ├── Sidebar.jsx          # Navigation sidebar
│   │   │   └── primitives.jsx       # Card, Button, Accordion components
│   │   └── docs/                    # Documentation components
│   ├── lib/
│   │   ├── engine/                  # Core diagnostic engine
│   │   │   ├── index.ts             # runDiagnosis() orchestrator
│   │   │   ├── map.ts               # Problem → node mapper (GraphRAG + Zod validation)
│   │   │   ├── traverse.ts          # Deterministic BFS prerequisite traversal
│   │   │   └── quiz.ts              # Hybrid quiz resolver (authored + cached generation)
│   │   ├── curriculum/              # Curriculum graph system
│   │   │   ├── graph.ts             # Authored NCTB Physics graph (19 nodes, mechanics vertical)
│   │   │   ├── store.ts             # GraphStore abstraction (Dynamic, InMemory, Neo4j)
│   │   │   ├── types.ts             # ConceptNode, Classroom, DiagnosisResult types
│   │   │   ├── neo4j.ts             # Neo4j driver + config
│   │   │   ├── seed.ts              # Graph seeding logic
│   │   │   └── extract.ts           # AI concept extraction from materials
│   │   ├── agents/tutor.ts          # LangGraph tutor agent (RAG + mastery + grounded chat)
│   │   ├── rag/index.ts             # RAG pipeline (chunk, embed, store, retrieve)
│   │   ├── gemini.ts                # Gemini API client with retry + model-chain fallback
│   │   ├── firebase.ts              # Firebase client SDK
│   │   ├── firebase-admin.ts        # Firebase Admin SDK
│   │   └── auth.ts                  # Auth utilities
│   └── utils/                       # React hooks (useAuth, useProfile, useUpload, etc.)
├── .env.example                     # Environment variable template
├── package.json
├── next.config.mjs
├── tailwind.config.js
└── tsconfig.json

Quick Start

Prerequisites

• Node.js >= 18
• pnpm >= 8
• Firebase project (Auth + Firestore)
• Gemini API key

1. Clone and install

git clone https://github.com/bokaif/RootsAI.git
cd RootsAI
pnpm install

2. Configure environment

cp .env.example .env.local

Fill in values (see Environment Variables below).

3. Run

pnpm dev

App runs at http://localhost:4000.

4. First-run checklist

1. Sign up and pick a role (student or teacher).
2. As a student: type or photograph a physics problem → run diagnosis → take quiz → follow learning path → verify with Feynman.
3. As a teacher: create a classroom → upload materials → view student analytics.

Environment Variables

Variable	Required	Description
NEXT_PUBLIC_FIREBASE_API_KEY	Yes	Firebase client API key
NEXT_PUBLIC_FIREBASE_AUTH_DOMAIN	Yes	Firebase auth domain
NEXT_PUBLIC_FIREBASE_PROJECT_ID	Yes	Firebase project ID
NEXT_PUBLIC_FIREBASE_STORAGE_BUCKET	Yes	Firebase storage bucket
NEXT_PUBLIC_FIREBASE_MESSAGING_SENDER_ID	Yes	Firebase messaging sender ID
NEXT_PUBLIC_FIREBASE_APP_ID	Yes	Firebase app ID
AUTH_SECRET	Yes	Auth session secret
GEMINI_API_KEY	Yes	Gemini API key for all AI features
SUPABASE_URL	Yes	Supabase project URL (for file storage + RAG vectors)
SUPABASE_SERVICE_ROLE_KEY	Yes	Supabase service role key
SUPABASE_STORAGE_BUCKET	Optional	Storage bucket name (default: uploads)
NEO4J_URI	Optional	Neo4j/Aura URI (falls back to in-memory graph if unset)
NEO4J_USERNAME	Optional	Neo4j username
NEO4J_PASSWORD	Optional	Neo4j password
SEED_SECRET	Optional	Shared secret for POST /api/curriculum/seed

API Reference

Diagnoses

Method	Route	Purpose
POST	/api/diagnoses	Create new diagnosis from problem text/image
GET	/api/diagnoses/[id]	Get diagnosis details
GET	/api/diagnoses/[id]/quiz	Get quiz questions for diagnosis
POST	/api/diagnoses/[id]/evaluate	Submit quiz answers, compute gaps
POST	/api/diagnoses/[id]/plan	Generate adaptive lesson plan
POST	/api/diagnoses/[id]/chat	Contextual AI chat within diagnosis
POST	/api/diagnoses/[id]/feynman	Submit Feynman verification (voice/text+photo)
GET/POST	/api/diagnoses/[id]/progress	Get/update learning path progress
GET	/api/diagnoses/[id]/hint	Get hint for current concept
GET	/api/diagnoses/[id]/learn	Get learning content

Classrooms

Method	Route	Purpose
POST	/api/classrooms	Create classroom (teacher)
GET	/api/classrooms/[id]	Get classroom details
POST	/api/classrooms/[id]/join	Join classroom (student)
POST	/api/classrooms/join	Join by classroom code
POST	/api/classrooms/[id]/materials	Upload material
DELETE	/api/classrooms/[id]/materials/[materialId]	Delete material
POST	/api/classrooms/[id]/extract	Extract concept graph from materials
GET	/api/classrooms/[id]/graph	Get classroom concept graph
GET	/api/classrooms/[id]/analytics	Teacher analytics

Other

Method	Route	Purpose
POST	/api/transcribe	Transcribe audio to text
POST	/api/upload	Upload file to Supabase Storage
GET/PUT	/api/profile	User profile
POST	/api/curriculum/seed	Seed Neo4j from authored graph (requires SEED_SECRET)

Technical Notes

• Graph validation is hard, not soft. The mapper returns a node slug; Zod validates it against real slugs. A hallucinated slug throws OutOfScopeError, never passes through.
• Gemini model chain: gemini-2.5-flash → gemini-2.0-flash → gemini-flash-latest, with per-model retry on transient errors (429/5xx).
• Quiz caching: Generated questions are cached in Firestore quiz_cache collection keyed by node ID. After first generation, a node's quiz is deterministic.
• Learning path ordering: Friction nodes ordered by graph depth DESC (foundational-first), tie-broken by node ID — same invariant used across quiz ordering, lesson plans, and learning path.
• Serpentine geometry is measurement-free: parity-based left/right lanes with percentage-based SVG connectors. No ResizeObserver needed.
• Neo4j is optional. Without NEO4J_URI, the engine uses the in-memory authored graph. Both paths produce identical traversals for the same root.

The Infinity AI BuildFest

Built for The Infinity AI BuildFest organized by CloudCamp Bangladesh. The idea: when a student struggles with a Class 9 topic, the real gap is often something from Class 7 or 8 that was never fully understood. RootsAI goes looking for that root cause.

Team

• @bokaif (Badruddoza Kaif)
• @MrDuck04 (Abror Mahir)
• @mdnaimur0 (Md. Naimur Rahman)
• @Moraladnan (Md. Adnan Arefin Ratul)
